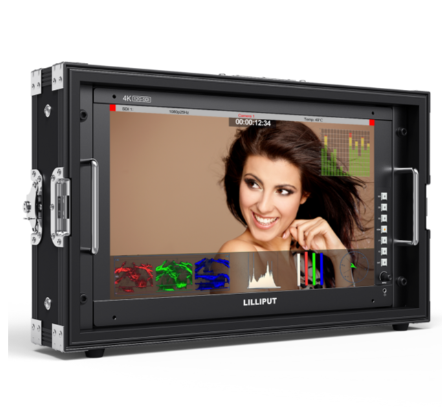

Q17 Pro 12G-SDI Broadcast/Production Monitor

PRODUCT DESCRIPTION

Q17 Pro 12G-SDI Broadcast/Production Monitor

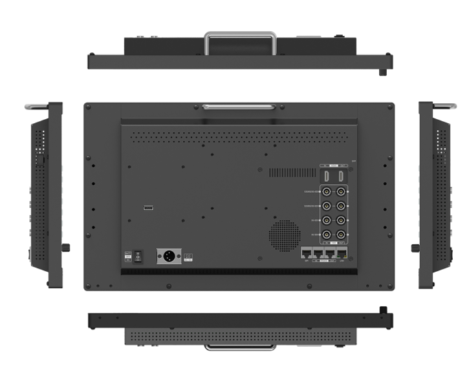

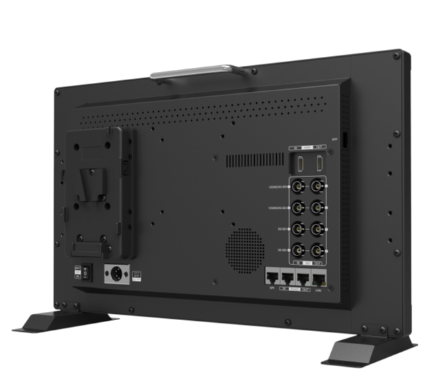

Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals.

Support HDMI 2.0/1.4 inputs and loop output

Support SFP optical Connector input, optical module for optional.

Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160 23.98/24/25/29.97/30/47.95/48/50/59.94/60p.

Monitor control via LAN, GPI, RS422.

Customized Menu Knob.

Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio Vector/Level Meter.

HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma.

Gamma selection: 1.8-2.8.

Custom 3D LUT file load through USB.

Wide color space supporting SMPTE-C, Rec709, EBU and Native.

Color Space/ HDR/Gamma/Camera Log comparison with original (side by side).

Color Temperature: 3200K/5500K/6500K/7500K/9300K/User.

False Color: Default/Spectrum/ARRI/RED.

Aspect Marker (16:9/1.85:1/2.35:1/4:3/2.0X/2.0X MAG/Grid/User).

Aspect (Full/16:9/1.85:1/2.35:1/4:3/3:2/2.0X/2.0X MAG).

Audio: supporting Audio Phase and Level Meter, HDMI supporting 8 channels, and SDI supporting 16 channels.

TimeCode: LTC/VITC.

UMD display:White/Red/Green/Blue/Yellow/Cyan/Magenta text color for optional.

Color Bar Mode: Rec601/Rec709/BT2020.

Check Field: Red/Green/Blue/Mono.

Zoom at any position and at different scale.

Peaking (Red/Green/Blue/White/Black).

Tally (Red/Green/Yellow).
